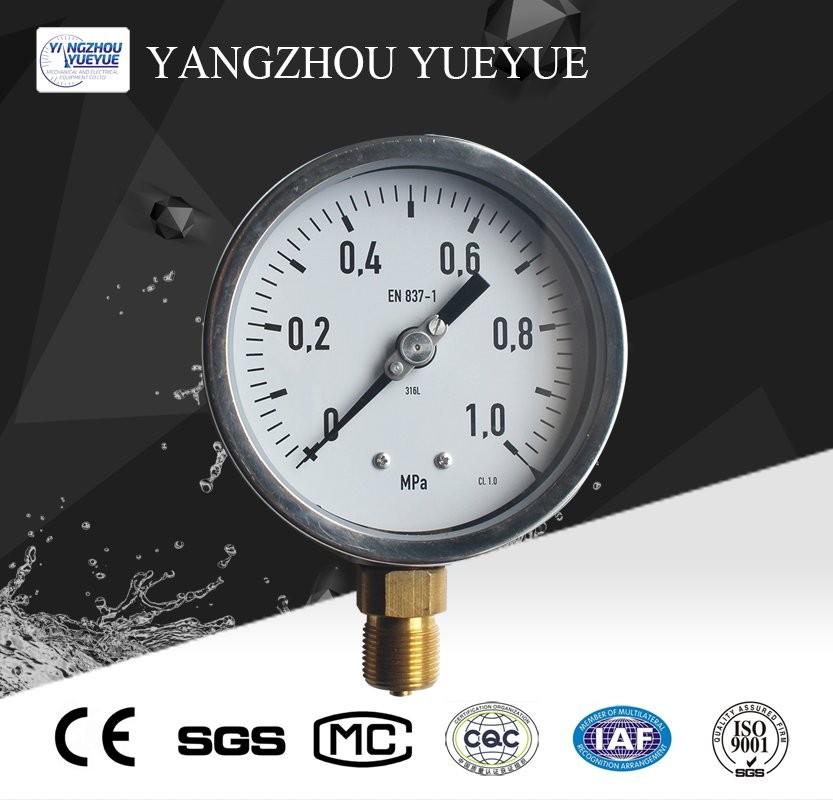

Description
Nominal size:100mm
Ranges:-1-0bar Vacuum to 0-600bar or customized
Case material:304 SS case
Window:safety glass
Pressure element:C type for sealed bourdon tube (<100bar) Coiled type(>100bar)
Joints:soldered with tin alloy/silver
Movement:high precision brass
Process connection:1/2" 3/8"BSP 22mm hexagon block or according to buyer's requirements

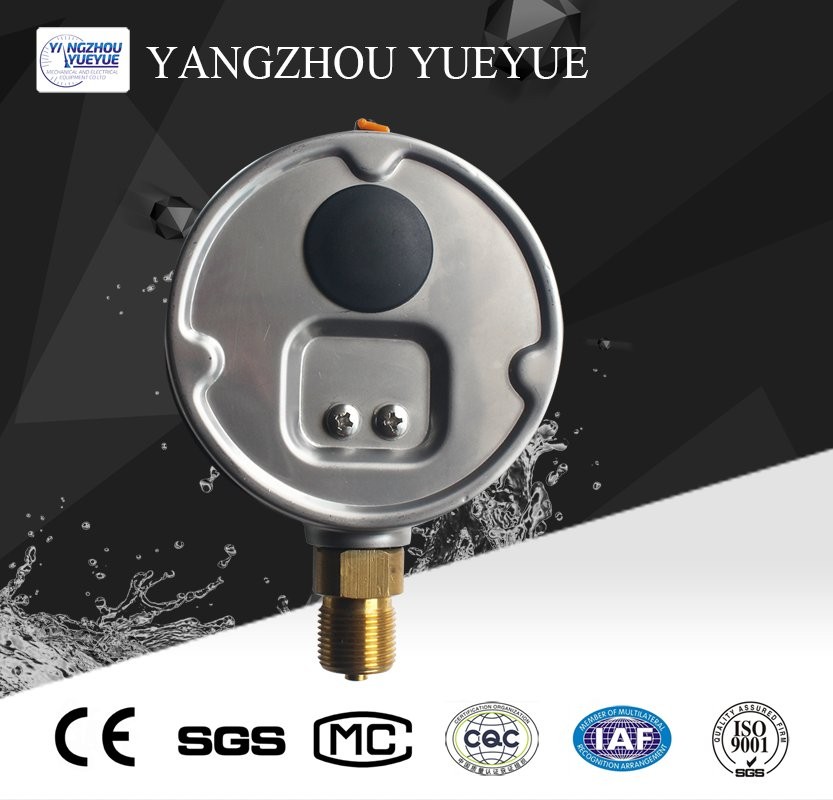

Center back blow-out:30mm black rubber
Pointer:adjustable aluminum material
Dial:Aluminum,white
Accuracy class:1.0,1.6
Using temperature:-20degree to 60degree
