Description
The pressure gauge elbow is also called the pressure gauge buffer tube or the condensing tube. It is an accessory used to connect the pressure gauge and the pressure gauge measurement equipment or pipeline to buffer the instantaneous impact of the measured medium on the pressure gauge spring tube. Reducing the temperature of the measured medium is a device to protect the pressure gauge. It is widely used in equipment and process pipelines in the beer, beverage, food, paper, pharmaceutical, and decoration industries where the fluid pressure is required to be measured.

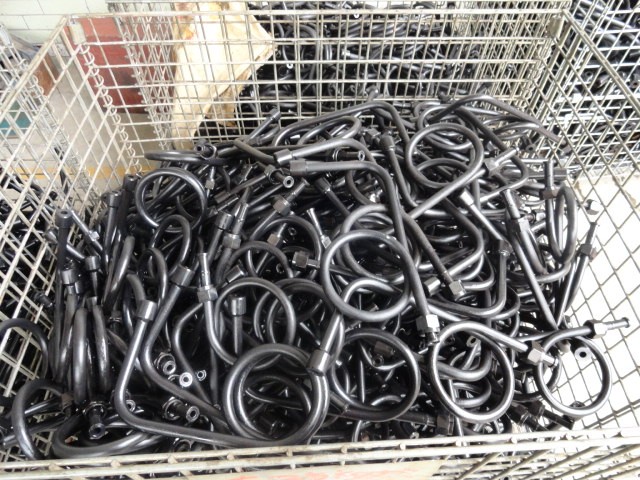

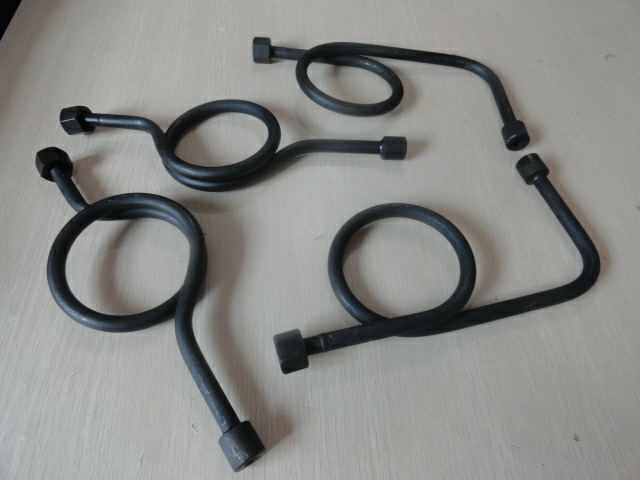

The form of the pressure gauge condensing ring is: O-shaped, U-shaped, etc.; The joints are: M20*1.5-G1/2, M14*1.5-G1/4, G1/2-G1/2, etc. It is widely used in the occasions where the fluid pressure is required to be measured on the equipment and process pipelines in the beer, beverage, food, paper, pharmaceutical, decoration and other industries.
skills requirement:
Maximum working pressure: 41.4MPa
Maximum working temperature: 400°C
Material quality: 20#, 321, 304, 304L, 316, 316L.
